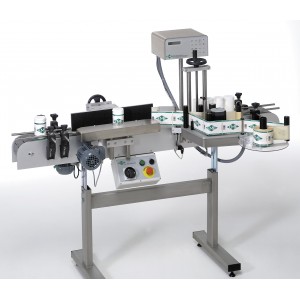

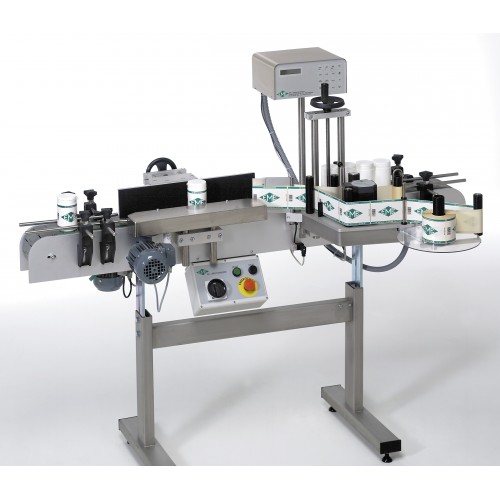

JE-1600/S4
JE-1600/S4 is a modern, automatic system for labelling of round containers in an efficient way.
It contains a strong, height adjustable conveyor on which the dispenser, model 4120, is mounted on the side on a vertical adjustable spindle, applying the label.
A rotation unit rotates the container and press on the label in one operation.
The microprocessor control allows storage of all settings, providing easy start up of production.
The system can be expanded with print system, separator, counter, tables, larger dispenser, scanner, etc.
System Specifications |
Product Diameter |
Ø10-Ø150 mm depending on configuration |
Product Height |
10-400mm |
Capacity / min |
15-250 (depending on product/label) |
System Length |
1630/2000/2500/3000mm
(Other length on request) |
Power Connections |
1 x 230Vac 500Watt.
Green energi motors |
Air Connection |
40-60 Psi cleaned compressed Air *
*Only when separator / printer is fitted |
Dispenser Specifications |
Label Width |
15 -120 mm |
Label Length |
10 - 250 mm
(Optional: 999 mm) |
Speed m/min |
0 - 40 m/min. |
Labels/min. |
Up to 500 labels/min. |
Roll Diameter |
270 mm is standard. Optional 310 mm or 400 mm. |
Core Diameter |
40 mm or 3'/76mm |
Menu Languages |
Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
