SA-1300/S4-PFP
Type: SA-1300/S4-PFP
SA-1300/S4-PFP

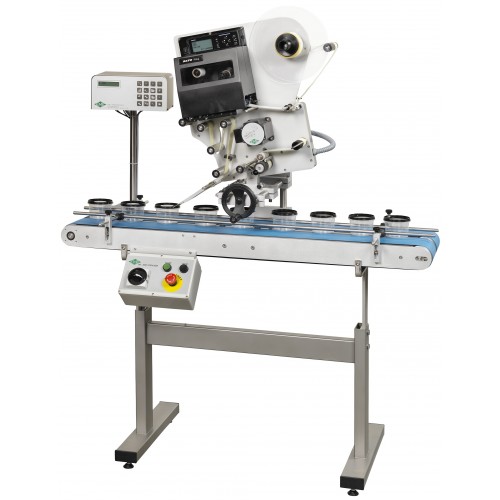

Model SA-1300/S4 is build for labelling of tray packs and similar products, on top and bottom.
The 2 section conveyor is build in a low profile design, in stainless steel and aluminium.
It can be delivered with belts in different qualities and dimensions and to run in left or right direction.
The dispensers are mounted on adjustable spindles, for easy adjustment of the desired label position. The bottom dispenser can glide out to the side of the conveyor frame, for easy change of label roll.
LO-1600 can be delivered with series 2000, 3000 og 4000 .dispensers, as desired.
A wide range of options are available: print system, counter, transparent label detection, etc.
Model SA-1300/S4 is build for labelling of tray packs and similar products, on top and bottom.
The 2 section conveyor is build in a low profile design, in stainless steel and aluminium.
It can be delivered with belts in different qualities and dimensions and to run in left or right direction.
The dispensers are mounted on adjustable spindles, for easy adjustment of the desired label position. The bottom dispenser can glide out to the side of the conveyor frame, for easy change of label roll.
LO-1600 can be delivered with series 2000, 3000 og 4000 .dispensers, as desired.
A wide range of options are available: print system, counter, transparent label detection, etc.
| System Specifications | |
| Productlength | 50-250mm |
| Product Width | 50-250mm* *Others on request |
| Product Height | 10-300mm |
| Capacity / min | 15-150 (depending on product/label) |
| System Length | 1600mm (Other length on request) |
| Power Connections | 1 x 230Vac 800Watt. Green energi motors |
| Dispenser Specifications | |
| Label Width | 15 -120 mm |
| Label Length | 10 - 250 mm (Optional: 999 mm) |
| Speed m/min | 0 - 35m/min. |
| Labels/min. | Up to 500 labels/min. |
| Roll Diameter | 270 mm |
| Core Diameter | 40 mm or 3'/76mm |
| Menu Languages | Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
SA-1300/S4-PFP brochure
