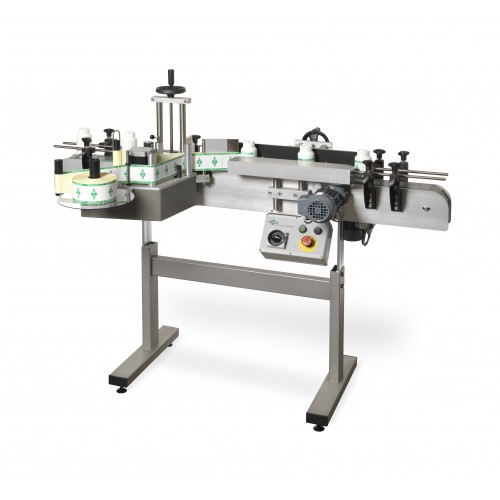

JE-1600/S2
Type: JE1600/S2
Low-entry wrap-around system:
JE-1600/S2 is an automatic system for labelling of round containers in a rational way.
It contains a strong, height adjustable conveyor on which the dispenser, model Series 2000, is mounted on the side on a vertical adjustable spindle, applying the label.
A rotation unit rotates the container and press on the label in one operation.
The system can be expanded with print system, separator, counter, tables, larger dispenser, etc.
JE-1600/S2 is an automatic system for labelling of round containers in a rational way.
It contains a strong, height adjustable conveyor on which the dispenser, model Series 2000, is mounted on the side on a vertical adjustable spindle, applying the label.
A rotation unit rotates the container and press on the label in one operation.
The system can be expanded with print system, separator, counter, tables, larger dispenser, etc.
| System Specifications | |
| Product Diameter | Ø10-Ø300 mm depending of configuration |
| Product Height | 10-400mm |
| Capacity / min | 15-250 (depending on product/label) |
| System Length | 1630/2000/2500/3000mm (Other length on request) |
| Power Connections | 1 x 230Vac 500Watt. Green energi motors |
| Air Connection | 40-60 Psi cleaned compressed Air * *Only when separator / printer is fitted |
| Dispenser Specifications | |
| Label Width | 15 -120 mm |
| Label Length | 10 - 250 mm (Optional: 999 mm) |
| Speed m/min | 0 - 40 m/min. |
| Labels/min. | Up to 500 labels/min. |
| Roll Diameter | 270 mm is standard. Optional 310 mm or 400 mm. |
| Core Diameter | 40 mm or 3'/76mm |
| Menu Languages | Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
